TECHNICAL SELECTION GUIDE

Structural Advantages and Application Scenarios of Four Mainstream Heat Exchangers

A practical comparison of gas-to-gas plate, finned-tube, bare-tube, and air-cooled heat exchanger designs

Heat exchangers are core energy-saving devices in industrial production, HVAC, and energy-recovery systems. Their primary function is to transfer heat between two or more fluids for heating, cooling, waste-heat recovery, and process temperature control. Wide variations in phase, cleanliness, pressure, temperature, and available installation space have led to distinct exchanger configurations. Gas-to-gas plate heat exchangers, gas-to-liquid finned-tube heat exchangers, gas-to-gas bare-tube heat exchangers, and air-cooled heat exchangers are among the most widely used. Each has its own operating principle, structural strengths, limitations, and best-fit applications. This guide reviews all four to support equipment selection and duty matching.

1. Gas-to-Gas Plate Heat Exchanger: High-Efficiency, Compact Waste-Heat Recovery

A gas-to-gas plate heat exchanger uses corrugated metal plates as its primary heat-transfer surface. Multiple stacked plates create alternating hot- and cold-gas channels. The two streams flow in counter-current or cross-flow patterns and exchange heat rapidly through thin metal walls. This configuration is one of the most thermally efficient options for gas-to-gas service.

Key Advantages

High thermal efficiency. A proprietary bidirectional corrugated-plate structure promotes strong turbulence and overcomes the limits of conventional laminar flow. The film heat-transfer coefficient can reach about 1.5 times that of a conventional shell-and-tube exchanger and more than twice that of a typical finned-tube unit. Reported heat-recovery efficiency can reach 70%–90%, enabling substantial recovery of gas-stream waste heat.

Extremely compact construction. Modular pressed plates provide approximately 50–80 m² of heat-transfer area per cubic metre of equipment volume. The footprint can be roughly one-third that of a conventional shell-and-tube design. The unit is relatively light and can be wall-mounted, elevated, or combined in modules where space is limited.

Stable operation and practical maintenance. Smooth plate surfaces resist fouling and can be designed for removal and cleaning. Fully welded sealing minimizes cross-leakage between gas streams and supports slightly positive or negative operating pressures. Elastic expansion compensation can absorb thermal growth, allowing specially engineered units to handle flue-gas temperatures up to approximately 1,050°C without contaminating the secondary stream.

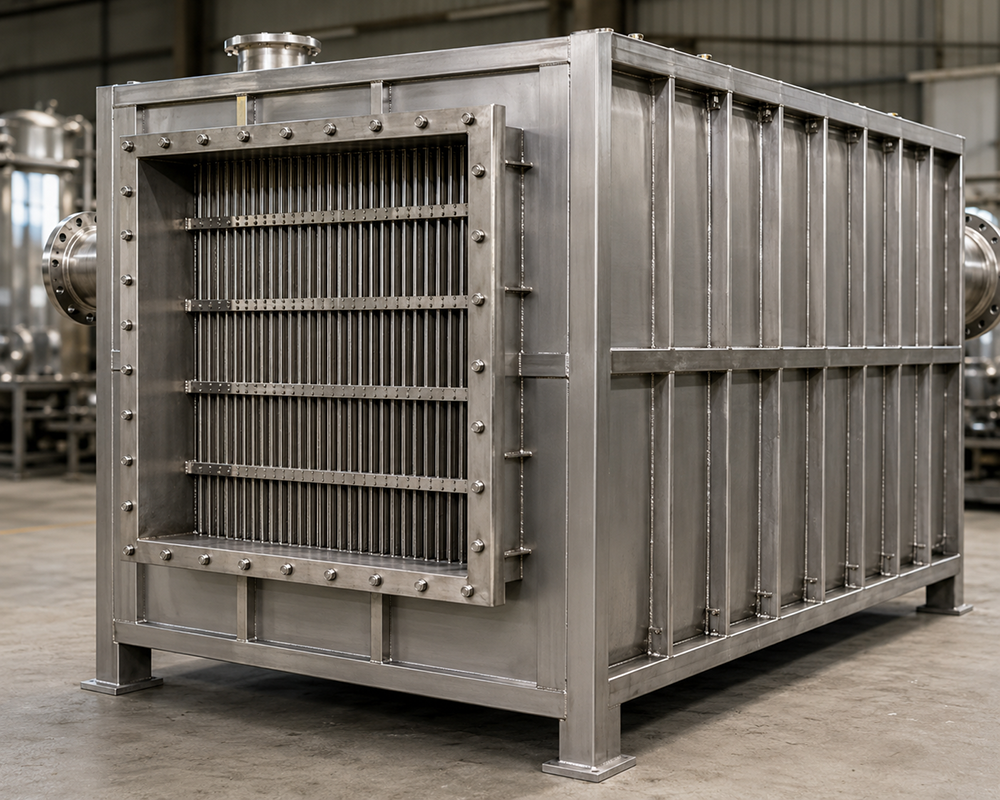

Figure 1. Photorealistic gas-to-gas plate heat exchanger module with a visible plate-channel core.

Typical Applications

In commercial HVAC systems, the exchanger transfers heat between indoor exhaust air and outdoor fresh air to preheat or precool the incoming stream, reducing the load on air-conditioning and ventilation equipment. Industrial uses include clean flue-gas and dryer-exhaust heat recovery in hydrogen production, acrylonitrile processing, food drying, coating lines, and electronics manufacturing. It can also support industrial furnaces, wall-mounted boilers, fuel-cell systems, and protein spray-drying towers by recovering exhaust heat to preheat combustion air or process make-up air. Mature modular designs suit both small retrofit projects and large integrated systems; the source document notes installations serving major enterprises such as CNPC and Baosteel, as well as overseas projects.

Limitation. The narrow flow passages are unsuitable for gas streams containing heavy dust, tar, or viscous contaminants because plugging may occur. Selection should therefore be conservative in severely dusty or corrosive environments.

2. Gas-to-Liquid Finned-Tube Heat Exchanger: A Versatile High-Performance Design

A gas-to-liquid finned-tube heat exchanger consists of base tubes fitted with external fins. Liquid flows inside the tubes while gas passes across the finned exterior. The fins greatly enlarge the gas-side heat-transfer surface, compensating for the low thermal conductivity and heat-transfer coefficient of gases. This makes the design a mainstream solution wherever gas and liquid must exchange heat.

Key Advantages

Efficient use of heat-transfer area. The liquid-side coefficient is typically much higher than the gas-side coefficient. Precision-rolled or high-frequency-welded fins can increase the external surface area by several to dozens of times, balancing the two sides and significantly lowering exhaust-gas or discharge-air temperatures compared with bare tubes.

High mechanical strength and broad duty coverage. Hydraulic expansion, integral rolling, and high-frequency welding create strong contact between the fins and base tubes. The assembly withstands pressure, elevated temperature, and vibration, while reducing the risk of fin separation and long-term performance loss.

Flexible customization and strong lifecycle value. The unit can be engineered around airflow, liquid temperature, installation envelope, and fluid properties. Carbon steel is suitable for routine ventilation and drying; galvanized or coated steel can handle mildly corrosive conditions; and stainless steel serves more aggressive chemical environments. With no delicate moving components, the exchanger is straightforward to maintain and cost-effective in repeat industrial service.

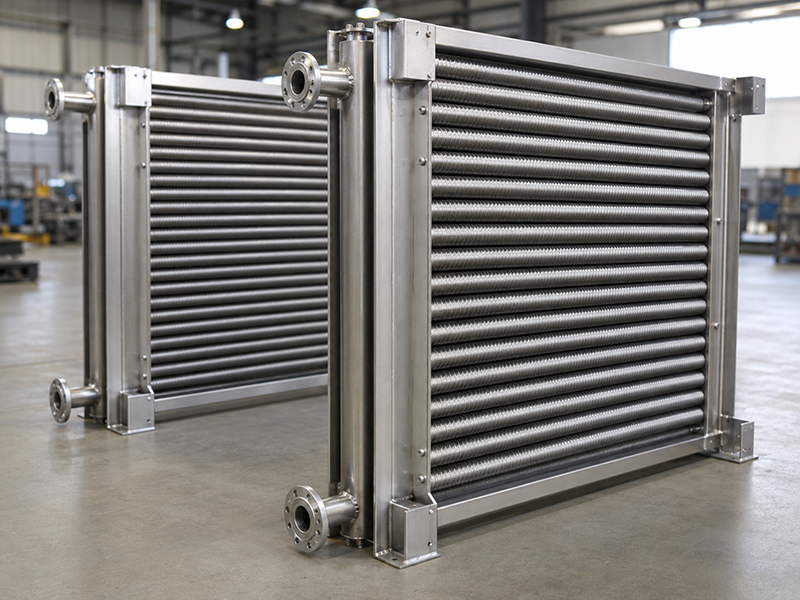

Figure 2. Photorealistic finned-tube coil modules with headers, flanged connections, and manufacturing details.

Typical Applications

In HVAC and commercial equipment, finned-tube coils are central components in air-conditioning systems, air-source heat pumps, air-cooled heat-pump units, and dryers. Chilled water, hot water, or refrigerant inside the tubes cools, dehumidifies, heats, or dries the air stream. Industrial applications include air cooling and heat recovery in petrochemical, power, metallurgical, and steel plants; cooling hot oil, circulating water, or thermal oil; chemical exhaust-gas cooling; workshop air heating; production-line drying; hot-dip galvanizing processes; and boiler-flue-gas heat recovery.

Limitation. Closely spaced fins can trap dust and particles. In heavily contaminated or sticky service, the coil requires scheduled blowing, washing, or removable cleaning access to prevent fouling and blockage.

3. Gas-to-Gas Bare-Tube Heat Exchanger: Rugged Equipment for Harsh Service

A gas-to-gas bare-tube heat exchanger uses bundles of smooth metal tubes without fins or corrugations. Hot and cold gas streams flow on opposite sides of the tube wall, commonly in counter-current arrangements. The simple construction is durable and well suited to difficult industrial environments.

Key Advantages

Resistance to plugging, erosion, and difficult maintenance. Smooth round tubes contain no fins, sharp projections, or narrow corrugations where dust, particles, or light tar can readily accumulate. Any deposits that do form can be removed by high-pressure air, water, or mechanical cleaning. This supports continuous operation in contaminated service.

Exceptional structural robustness. The tube bundle can withstand high-temperature, high-velocity, particle-laden gas while providing strong resistance to abrasion and corrosion. A purpose-designed high-temperature configuration can handle flue gas at approximately 1,050°C. The uncomplicated sealing arrangement also reduces leakage risk under severe thermal and pressure conditions.

Predictable performance in extreme environments. Conventional bare-tube units are less thermally efficient than plate or finned-tube exchangers, but their simple geometry and reliability make them suitable where resistance to process disturbance matters more than compactness. At very high temperatures, combined convective and radiative heat transfer can improve overall heat utilization.

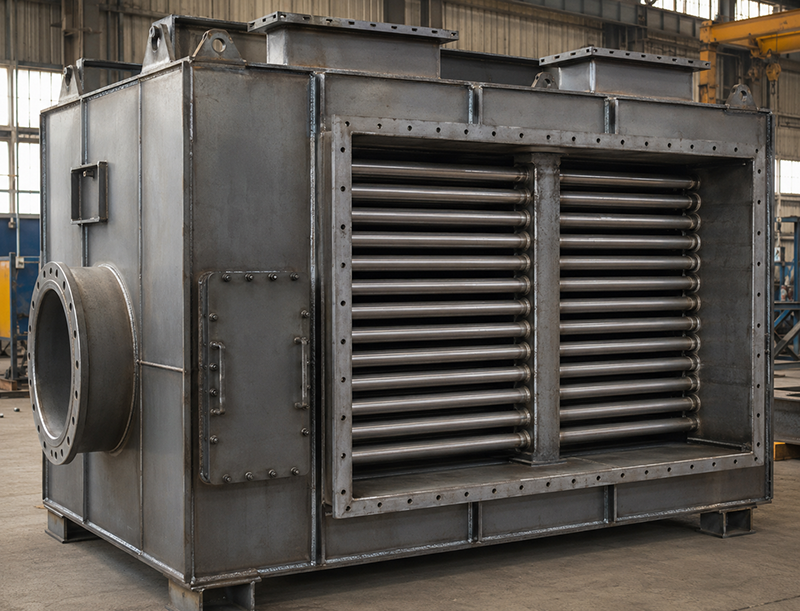

Figure 3. Photorealistic heavy-duty gas-to-gas bare-tube exchanger designed for dusty, high-temperature flue gas.

Typical Applications

This design is widely used for waste-heat recovery from high-temperature, high-dust, and high-contaminant gas streams in industrial furnaces, boilers, metallurgical reheating furnaces, and heat-treatment equipment. Recovered heat is commonly used to preheat fresh air or combustion air. Other applications include contaminated exhaust service in chemical processing, building materials, coal handling, waste incineration, solid-waste treatment, and soil-remediation off-gas incineration. It is often selected where plate and finned-tube equipment cannot remain reliable.

The exchanger is also used in large industrial ventilation and exhaust-gas pretreatment systems, for both new production lines and energy-efficiency retrofits. Its principal disadvantages are lower heat-transfer efficiency and a larger footprint, making it less suitable for clean, space-constrained duties that demand maximum energy recovery.

4. Air-Cooled Heat Exchanger: General-Purpose Forced-Convection Cooling

An air-cooled heat exchanger, often called an air cooler, removes heat by forced convection. It can handle liquid-to-air or gas-to-air duties. The assembly generally includes a tube bundle or plate-fin core, axial fans, a structural frame, and process inlet and outlet connections. Hot liquid or gas flows through the internal passages while fans drive ambient air across the external surface.

Key Advantages

No cooling-water system. Ambient air serves as the cooling medium, eliminating cooling water, cooling towers, and circulating-water pumps. Only the fan motors consume operating power, reducing water demand, supporting equipment, and routine maintenance costs—particularly valuable at remote or water-scarce sites.

Automated, stable temperature control. Variable-frequency fan drives can regulate airflow and cooling capacity in response to process temperature. This limits temperature swings and provides adequate control accuracy for most conventional industrial duties.

Flexible installation and durable operation. Modular, preassembled units require relatively little field piping and can be installed outdoors, indoors, or at remote sites. Carbon steel, coated or galvanized steel, and stainless steel can be specified for standard, mildly corrosive, or aggressive service. Routine maintenance is usually limited to cleaning dust from the bundle or plate-fin surface, making the design suitable for 24-hour operation.

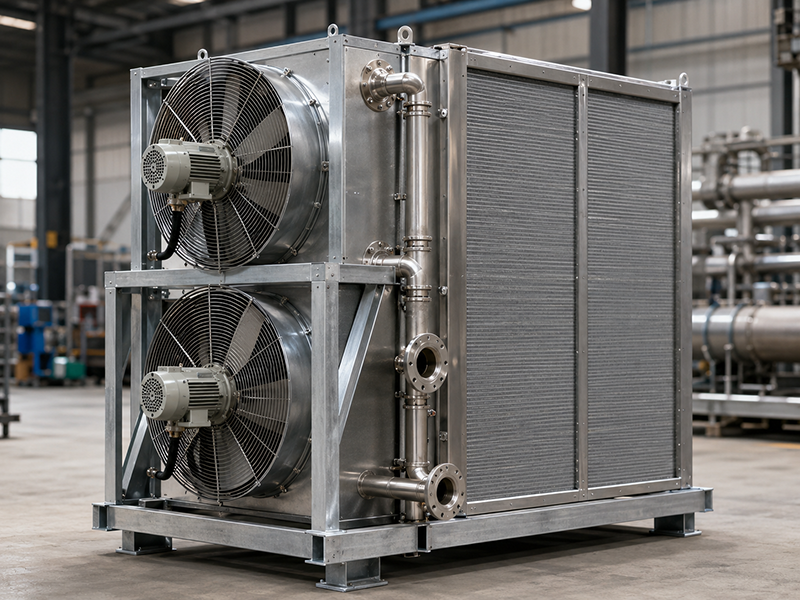

Figure 4. Photorealistic air-cooled heat exchanger skid with dual axial fans and a finned process coil.

Typical Applications

Air coolers are standard heat-rejection equipment for hydraulic systems, reducer and gearbox lubrication systems, machine tools, mining equipment, and metallurgical machinery. They prevent excessive oil temperature, seal degradation, equipment sticking, and lubricant breakdown. In energy and power systems, they cool transformer oil, generator lubricating oil, compressor discharge or recovered heat, and electrical equipment enclosures.

In petrochemical, chemical, and general mechanical service, air coolers reduce the temperature of thermal oil, circulating water, and other process fluids while avoiding scale, leakage, and infrastructure associated with water cooling. They are especially economical for mobile equipment, remote installations, and plants without a cooling-water system.

Limitation. Cooling capacity and the minimum achievable outlet temperature are constrained by ambient dry-bulb temperature. Performance declines during extreme heat, and the design is not suitable for ultra-low-temperature or exceptionally tight constant-temperature duties.

5. Selection Summary

No single heat exchanger is best for every duty. Selection should be based on the heat-transfer media, contamination level, pressure and temperature, site conditions, installation envelope, and control requirements.

Choose a gas-to-gas plate heat exchanger when the streams are relatively clean and the priorities are high energy recovery, compactness, and medium- to high-temperature operation in HVAC, chemical processing, or precision manufacturing.

Choose a gas-to-liquid finned-tube heat exchanger for broad gas–liquid duties such as temperature control, drying, cooling, HVAC, and conventional industrial waste-heat recovery.

Choose a gas-to-gas bare-tube heat exchanger for extremely hot, dusty, contaminated, or strongly fouling gas streams in metallurgy, waste incineration, building materials, coal processing, and off-gas treatment.

Choose an air-cooled heat exchanger when water is unavailable or undesirable and the application requires low-cost, continuous cooling for machinery, lubrication systems, power equipment, or process fluids.

Matching the exchanger to the actual duty maximizes heat-transfer performance, reduces energy consumption, simplifies maintenance, and extends service life across commercial energy-saving, industrial production, chemical processing, and heavy-industry applications.
